Half Body Enclosures

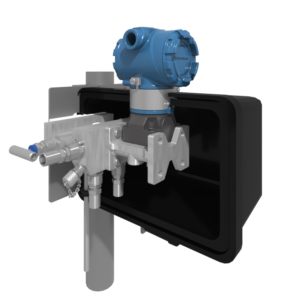

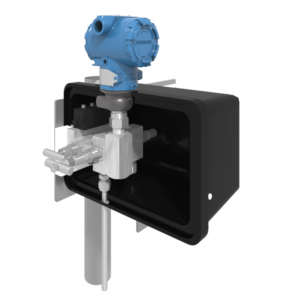

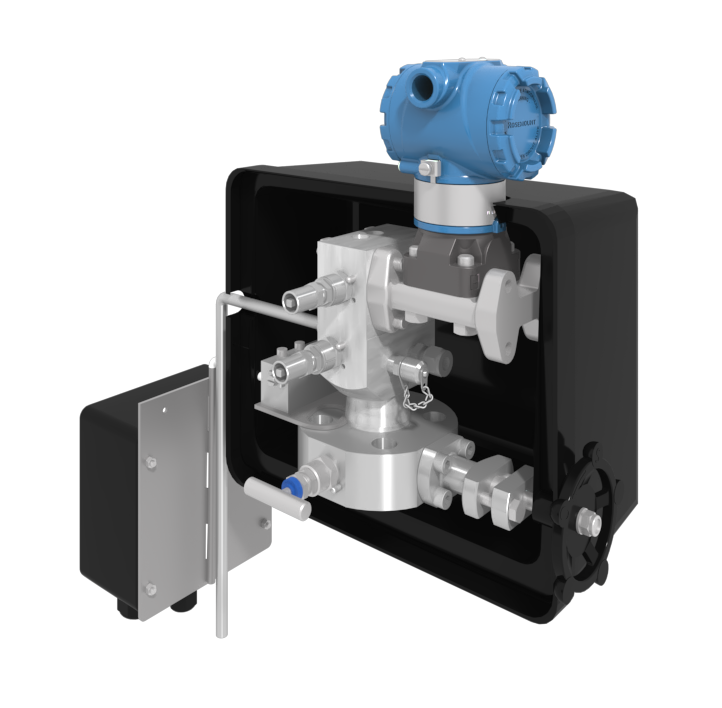

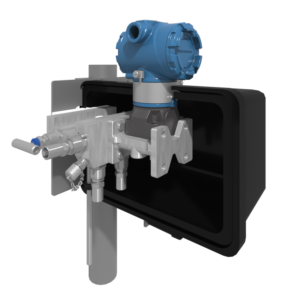

Together with DP Systems, Imperial Valve offers a complete range of Glass Reinforced Polyester (GRP) half body instrument enclosures for protection against frost, sand, salt spray and other harmful environments. These have been developed to encase the pressure parts of an assembly and are used together with heating elements and/or heat tracing lint.

Half Body Enclosures

Features

  • High density, so very strong and long lasting
  • Vertical split makes opening very easy
  • Thermally insulated optional
  • Anti-static optional
  • Standard colour light gray, other colours available
  • Stainless steel toggles and fasteners

Specifications

  • Protection rating to IP66, BS 5490/IEC 524
  • Temperature range -55°C to +140°C
  • Impact resistant to BS 5501
  • Fire retardant to BS 476 part 7 class 2 and self extinguishing
  • Anti-static to BS 5501 available

Downloads
Drawing:
half-body-enclosure-drawing
