Ball Valves

Our three-piece ball valves are specifically designed to deliver maximum strength, reliability, and durability. Featuring the innovative dynamic multi-ring gland system, well-known from our high-performance needle valves, these ball valves ensure outstanding performance across a wide range of applications.

Combined with an overpressure stem design, our ball valves are perfectly suited for use in various industrial processes, even under high pressures and extreme conditions. This makes them ideal for applications in industrial environments, process installations, and other demanding settings.

Advantages of our three-piece ball valves:

  • High strength and extended service life
  • Suitable for all operating pressures
  • Reliable sealing through the multi-ring gland system
  • Easy maintenance due to the three-piece design

Looking for a dependable solution for your system? Choose the proven quality of our industrial ball valves.

Ball Valve Female/Female

Specifications:

  • Rating                   6.000 psi
  • Pressure              413 bar @ 38C / 6.000 psi @ 100F
  • Size                        ¼”, ⅜”, ½”, ¾”, 1”
  • Body style           Straight
  • Construction      3 piece
  • Material               316
  • Stem                     1 piece, anti blow out
  • Packing                PTFE (standard), -73°C to 210°C (-99°F to 410°F)
  • Connection         Threaded
  • Threads                NPT
  • Operator              handle
  • Standard              MSS SP-110

Options:

  • Rating                   10.000 psi (higher on request)
  • Pressure              690 bar @ 38C (10.000 psi @100F)
  • Packing                Graphite, -54°C to 510°C (-65°F to 950°F)
  • Material               Virtually all types
  • Certification       NACE
  • Connection         SW, BW, compression fitting
  • Threads               BSPP, BSPT, Metric

Ball Valve Female/FemaleBall Valve Female x Female

  • S6BF44S 6,000 PSI / S10BF44S 10,000 PSI
    • Inlet ¼” – Outlet ¼”
  • S6BF88S 6,000 PSI / S10BF88S 10,000 PSI
    • Inlet ½” – Outlet ½”
  • S6BF1212S 6,000 PSI / S10BF1212S 10,000 PSI
    • Inlet ¾” – Outlet ¾”
  • S6BF1616S 6,000 PSI
    • Inlet 1″ – Outlet 1″

Downloads
Drawing:
ball-valves-female-female-drawing

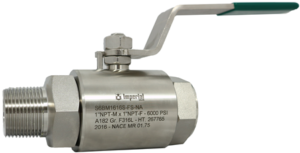

Ball Valve Male/FemaleBall Valve Male x Female

  • S6BM44S 6,000 PSI / S10BM44S 10,000 PSI
    • Inlet ¼” – Outlet ¼”
  • S6BM88S 6,000 PSI / S10BM88S 10,000 PSI
    • Inlet ½” – Outlet ½”
  • S6BM1212S 6,000 PSI / S10BM1212S 10,000 PSI
    • Inlet ¾” – Outlet ¾”
  • S6BM1616S 6,000 PSI
    • Inlet 1″ – Outlet 1″

Downloads
Drawing:
ball-valves-male-female-drawing
