2 Valve Manifolds

Specifications:

• Rating                  6.000 psi
• Pressure              413 bar @ 38C / 6.000 psi @ 100F
• Size                       1/2”
• Vent/Test            ¼”
• Body style           Straight
• Material               316
• Stem                     1 piece, anti blow out
• Tip                         Non-rotating, self centering
• Packing                PTFE (standard), -73°C to 210°C (-99°F to 410°F)
• Connection          Threaded
• Threads                NPT
• Operator              T bar
• Packing                External adjustable
• Orifice                  4 mm
• Standards           MSS SP-99, ANSI/ASME B1.20.1, ASME B16.34

Options:

• Rating                   10.000 psi (higher on request)
• Pressure               690 bar @ 38C (10.000 psi @100F)
• Packing                Graphite, -54°C to 510°C (-65°F to 950°F)
• Material               Virtually all types
• Certification        NACE
• Operator              Anti tamper operator, Lockable operator
• Connection         SW, BW, compression fitting
• Threads               BSPP, BSPT, Metric
• Cleaning              Oxygen
• Mounting            Pipe

2 valve manifold – Remote mounting

S62NRF88S – 6,000 PSI
S102NRF88S – 10,000 PSI

• ½” NPT-F / ½” NPT-F
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nrf88s-drawing

2 valve manifold – Remote mounting

S62NRAF88S – 6,000 PSI
S102NRAF88S – 10,000 PSI

• ½” NPT-F / ½” NPT-F
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nraf88s-drawing

2 valve manifold – Remote mounting

S62NRMF88S – 6,000 PSI
S102NRMF88S – 10,000 PSI

• ½”NPT-F / ½”NPT-M
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nrmf88s-drawing

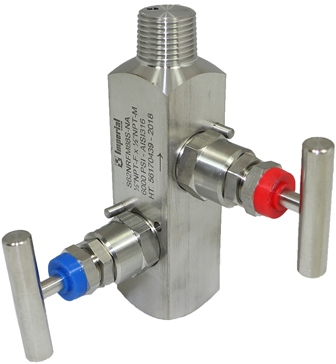

2 valve manifold – Remote mounting

S62NRFM88S – 6,000 PSI
S102NRFM88S – 10,000 PSI

• ½”NPT-F / ½”NPT-M
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nrfm88s-drawing

2 valve manifold – Remote mounting

S62NRF88AS – 6,000 PSI
S102NRF88AS – 10,000 PSI

• 3 x ½”NPT
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nrf88as-drawing

2 valve manifold – Direct mounting

S62NHD8S – 6,000 PSI

• IEC 61518 type A connection to transmitter standard
• Optional Stainless steel mounting bolts to transmitter
• PTFE (standard) and Grafoil O- rings (optional)
• ½”NPT-F / IEC61518/A
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nhd8s-drawing

2 valve manifold – Direct mounting

S62NWD8S – 6,000 PSI

• IEC 61518 type A connection to transmitter standard
• Stainless steel mounting bolts to transmitter available
• PTFE (standard) and Grafoil O- rings (optional)
• ½” NPT-F / IEC 61518/A
• Including accessories: Plug

Downloads
Drawing:
manifold-s62nwd8s-drawing
